Unsure why your DSC analysis varies? Selecting the perfect pan and lid can solve many accuracy problems instantly. Choose well, and your results will reflect your process exactly.
The specifications of DSC pans and lids—especially material type and dimensions—have a direct impact on measurement accuracy, thermal response, and the reproducibility of calorimetry results. Always verify material, size, and compatibility when buying replacements or considering upgrades.
Most engineers and lab professionals know a DSC device’s brand but often overlook pan and lid details. Small errors—wrong material, or even a barely-off size—can cause shifted baselines or unreliable data. Keep reading to learn practical, tested steps I use to avoid costly trial and error.
What Materials Are Used in DSC Pans and Lids?
Choosing the best pan and lid materials unlocks real precision in Differential Scanning Calorimetry. Some applications demand strict purity or unique thermal traits to capture fine details in endothermic or exothermic events.

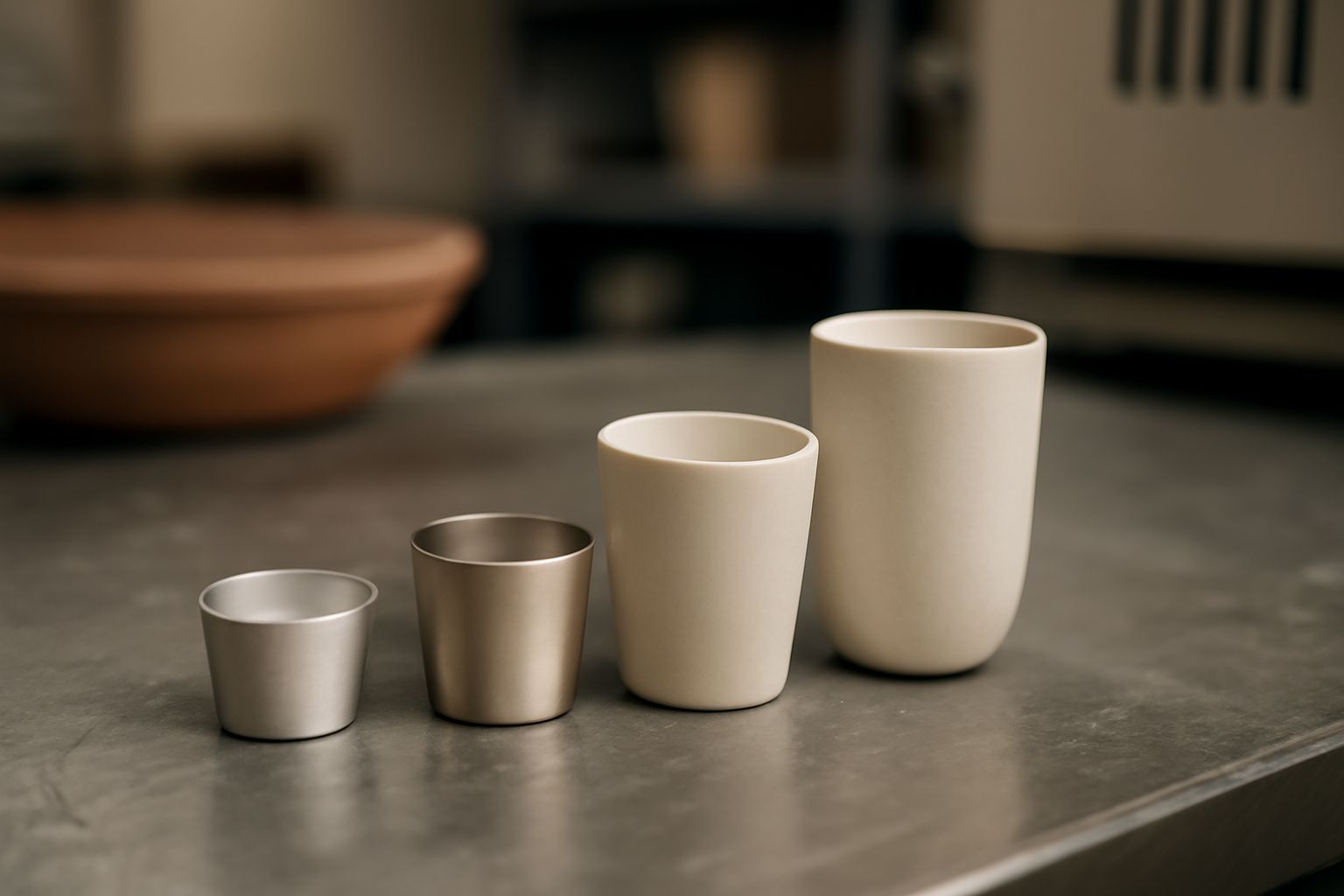

High-purity aluminum and platinum are most common for DSC pans and lids. Aluminum offers fast thermal response for standard tests, while platinum supports extreme thermal stability for sensitive, high-temperature work or reactive samples.
| Material | Main Properties | Best Use Cases | Notes |
|---|---|---|---|
| Aluminum | High conductivity 99.99% purity |
Routine polymer, pharmaceutical, food testing | Cost-effective |
| Platinum | Extreme stability Chemically inert |
High-temp, corrosive or reactive samples | Expensive, reusable for some applications |
| Other Alloys | Specialty needs, custom requests | Custom and advanced DSC techniques | Requires manufacturer verification |
Material selection is always guided by the intended experimental temperature range and the sample’s chemical reactivity. Institutions like the ASTM set standards for many common materials in scientific testing.
Why Is the Size of DSC Pans Crucial for Accurate Testing?
Many calibration failures and data inaccuracies happen when DSC pans are too large or too small for the device. Every instrument demands fitted parts for even heat distribution.
The correct pan diameter and depth ensure that samples are positioned efficiently in the cell, supporting well-calibrated, repeatable heat flow data. Always review your instrument's requirements, as even a 0.02mm error can produce significant test deviation.
| Parameter | Typical Range | Effect on Results | Measurement Guidance |
|---|---|---|---|
| Diameter | 5–7 mm (standard) | Ensures detector contact, avoids leaks | Check against manufacturer’s datasheet |
| Depth/Height | 1.5–3 mm | Sample containment, prevents overflow | Match with method protocol |
| Volume/Cup Capacity | 10–40 µL | Required for correct mass/sample | Weigh empty and filled pans |
When testing new samples, always use identical pans and lids to avoid unwanted thermal gradients. Document your dimensions for future reference—consistency means reliability.
How to Ensure Compatibility of Pans with DSC Instruments
Instrument breakdowns or poor results sometimes stem from the wrong pan or lid. Compatible pans do not just fit; they work with the full heating and cooling cycle.
Check both the mechanical fit and material match of your pans and lids before running any Differential Scanning Calorimetry test. Consult your instrument’s cross-reference list to buy correct replacements.
| Instrument Brand | Compatible Pan Series | Key Compatibility Criteria | Where to Find Reference |
|---|---|---|---|
| TA Instruments | Aluminum & Hermetic Pans | Fit flush on sensor, correct sealing | Model manual |
| PerkinElmer | Standard Flat & Sealed | Exact size, compatible crimper | Product reference chart |
| NETZSCH | High-purity Pans | Sensor surface area coverage | Instrument documentation |
Always consult your supplier’s compatibility chart or reach out if you need a custom size. Specialized platforms or datasheets—like technical cross-reference lists—help avoid costly mismatches, especially with older or rare DSC models.
Evaluating the Thermal Conductivity of DSC Pans and Lids
A pan with poor heat transfer slows response and distorts peaks during thermal events. Superior thermal conductivity ensures accurate, fast detection during your DSC run.
The right pan and lid conduct heat evenly, minimizing lag or hotspot errors. Aluminum and platinum excel because they quickly equalize temperature differences between the furnace, pan, and sample, delivering sharp, repeatable signals for phase transitions or melting events.
| Material | Typical Conductivity (W/m·K) | Impact on Signal Quality | Data Source |
|---|---|---|---|
| Aluminum | 235 | Best for clear, rapid response | Engineering Toolbox |
| Platinum | 72 | High stability, tolerates extreme runs | AZoM |
| Stainless Steel | 15 | Lower cost, less sharp baseline | Common in long-term tests |
For tests that require ultra-fast response, always select pans with the highest thermal conductivity rating suitable for your sample and instrument. Periodically test conductivity when using new or unfamiliar material types to confirm measurement repeatability as recommended in the thermal conductivity literature.
