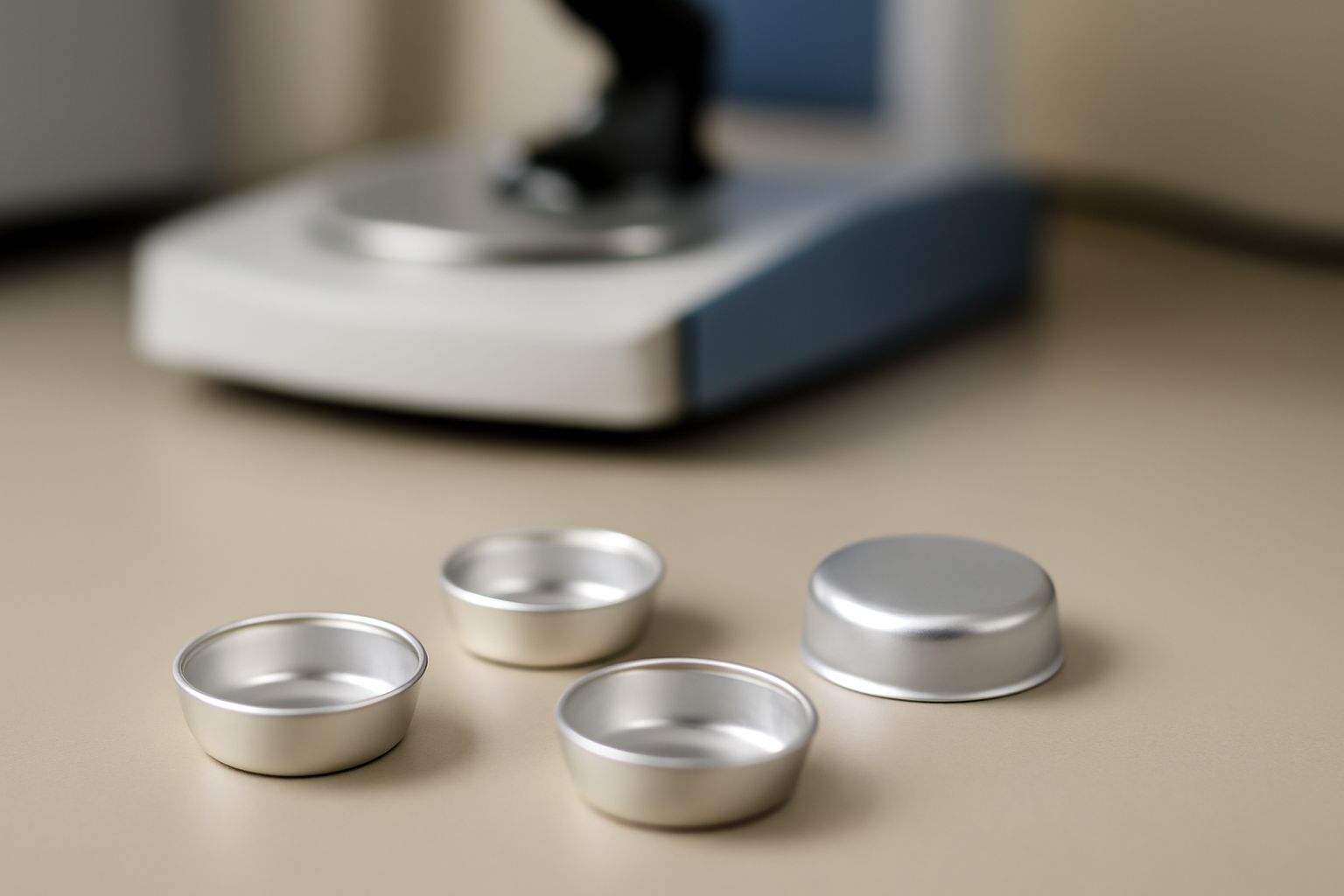

When using DSC sample pans, small issues can ruin your test and create frustration. Reliable test data demand that we solve these common pan problems once and for all.
Many problems with DSC sample pans come from compatibility, stability, or sealing failures. Identify these issues early and follow practical solutions to keep your DSC test results accurate and dependable.
Most lab workers run into pan-related troubles at some point. Let's walk through the most common problems and how I fix them in daily practice.
How to Troubleshoot Compatibility Problems with DSC Sample Pans?
It frustrates me when a DSC sample pan just will not fit or gives strange readings, especially on a busy testing day. Without the right pan, you waste time and energy on failed runs.
When a sample pan is not compatible with your DSC instrument, use a pan designed for your specific equipment brand and model. Always check size, shape, and material before you start testing.
Sometimes, I see labs mix up pans made for different DSC models. These DSC instruments from TA Instruments, PerkinElmer, METTLER, and other brands have unique pan sizes and shapes. Using a non-matching pan can make your pans wobble or produce incorrect data. I avoid this issue by checking fit and specs before every batch.
| Compatibility Factor | Common Issues | Solution |
|---|---|---|
| Pan Size/Shape | Poor thermal contact, unstable readings | Match exact pan spec with instrument model |
| Material | Incorrect baseline, degraded pans | Choose correct metal (Al, Pt, Au, Ag) as per manufacturer |
| Calibration | Shifted melting points, errors | Calibrate after changing pan batch or supplier |
Besides the fit, I also check with suppliers for compatibility charts. My own experience shows that a trusted supplier and clear instrument model reference prevent wasted testing time. Sometimes you need to ask about pan part numbers before buying direct replacements.
What to Do When Your DSC Sample Pans Show Poor Thermal Stability
My DSC tests can fail when pans cannot handle the temperature I set. Losing samples to pan melting or distortion is costly, especially with valuable chemicals.
If a sample pan’s material is not stable at your testing temperature, swap to a pan made for higher temperatures, such as platinum or gold, to avoid breakdown and loss of data.
Thermal stability of a pan depends on its base material. Aluminum pans work for most routine DSC testing up to about 600°C, but above that, I switch to platinum or gold pans. Sometimes, even with "high temp" labels, manufacturers give different thermal stability ranges. Always check before testing.
| Material Type | Max Operating Temp (°C) | When to Use |
|---|---|---|
| Aluminum | Approx. 600 | Common organics, polymers, pharma samples |
| Platinum | 1600+ | Inorganics, ceramics, extreme temps |
| Gold/Silver | 800–1100 | Specialty samples, oxidative stability tests |
For each new sample type or analysis temperature, I always match the pan to the sample and read the DSC’s user manual or technical sheets. Some substances even react with metals, so I sometimes ask the supplier if a liner or coating makes sense. This habit saves me costly reruns. Supplier-provided guides with test temperature limits are easy to find and help with quick pan choices. According to J. Wendlandt’s classic reference, “Thermal Methods of Analysis,” (Wiley, 2nd Ed.), always over-spec for temperature to avoid breakdown.
How to Handle Leakage or Sealing Issues in DSC Sample Pans
One of the worst moments in my lab is seeing test results ruined by pan leaks. A tiny hole or bad seal can waste days of careful prep and time.
When leakage or seal failure occurs during DSC testing, inspect the sealing ring and lid carefully. Replace any damaged pans and use proper sealing tools for a tight and even closure.
Leakage problems in DSC analysis show up as baseline drifts, sample loss, or even harmful vapor exposure. I start by checking if the lid clicks into place and the O-ring (when used) is not scratched. Use of a special crimping tool or press ensures the pan closes with full contact.
| Sealing Type | Common Issue | Fix & Prevention |
|---|---|---|
| Press-On Lid | Incomplete seal, vapor loss | Use provided sealing tool, check for deformation, apply steady pressure |
| Crimp Seal | Lid not attached, leaks easily | Verify crimp tool size, check for lid alignment |
| High Pressure Pan | Seal ruptures under heating | Only use pans rated for pressure, inspect O-rings and surfaces |
My main advice is to keep pans in a clean, dry place and check each one before use. Even a barely visible scratch can cause leaks under temperature. Suppliers often have technical documentation on sealing and crimping for their pan models—these are worth reading to avoid costly mistakes.
What Causes Deformation of DSC Sample Pans and How to Prevent It?
When a DSC pan warps or bends, it becomes almost impossible to get stable and repeatable results. Severe deformation wastes both my time and supplies.
Deformation can happen if the pan is overheated, loaded wrong, or made from a weak alloy. Always use the rated pan for your test and avoid overfilling or using damaged pieces.
Most pan deformation shows up as warping, shrinking, or pitting. Overheating is the biggest cause, especially with aluminum pans. Using pans at temperatures above their specification often leads to warping, which ruins heat flow measurement. I also check that I only load the sample volume suggested in the DSC manual, since overfilling can burst or stretch the pan.
| Deformation Factor | Observed Defect | How to Prevent |
|---|---|---|
| Overheating | Warping, bubbling, rupture | Stay within max temperature rating for each pan |
| Too much sample | Pans leak, seals burst | Weigh samples carefully, stay below max fill volume |
| Poor alloy or recycled pans | Unexpected bending, breakage | Buy from reliable brands with quality control like REDTHERMO |
From my experience, using new pans for each test improves the data return. Reusing pans that look fine to the eye may still lead to microcracks or wear, especially if you have run aggressive chemistry. The pan’s metallurgy and purity both matter in precision DSC analysis. For premium results, I avoid off-brand or gray market pans entirely.
