Understanding the Key Specifications of Thermal Analysis Crucibles for Precise Results

by Redthermo - 2025-06-14

Understanding the Key Specifications of Thermal Analysis Crucibles for Precise Results

Getting repeatable results in thermal analysis can be tough if you do not focus on each technical detail. One overlooked mistake leads to wasted time and failed tests.

To get accurate results, you need to know the main specifications of thermal analysis crucibles, including the material, temperature range, and tolerances. Choosing the right one helps make your experiments reliable and repeatable.

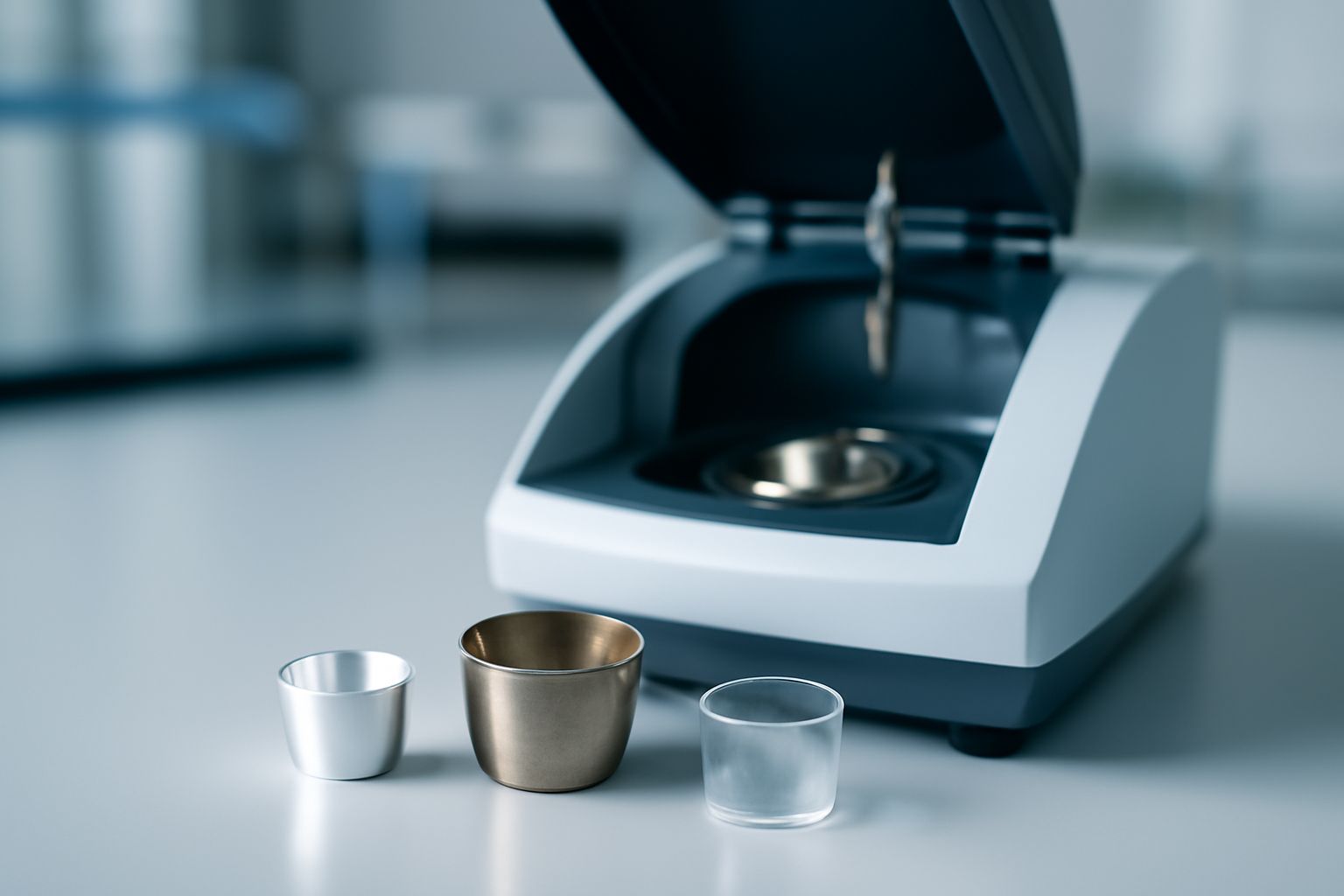

Various thermal analysis crucibles including platinum, aluminum, and sapphire types for high-precision laboratory testing

If you ignore the technical details of crucibles, your testing might not go as planned. Each choice you make—from the material to the exact size—directly impacts your data. In my labs, changing the crucible has often changed the whole outcome of a DSC experiment. Whether you are with a university or a large tech company, knowing these key specs will save you much trouble down the road.

What Are the Common Materials Used in Thermal Analysis Crucibles?

Trying to choose a crucible material can be confusing. Picking the wrong type makes your thermal test pointless even before you start.

The most used crucible materials for thermal analysis are platinum, aluminum, and sapphire. Each has different thermal stability and chemical resistance, so the right match depends on your test method and sample.

Material	Main Features	Typical Uses	Max Temperature (°C)
Platinum	Very high melting point, does not react with most samples, strong durability	High-temperature TGA/DSC, tests on harsh chemicals	1600
Aluminum	Lightweight, low cost, works for most routine samples	Everyday DSC, standard quality checks	600
Sapphire	Excellent thermal conductivity, stable at high temperatures, non-reactive to most organic substances	Reference pans, high-precision DSC calibration	2000

Choosing between platinum, aluminum, or sapphire comes down to the sample type and heating method. Platinum stands up to acids and high heat, while aluminum works for most routine testing. Sapphire helps when you need a non-reactive, high-temperature pan. These technical materials have shaped the standards in the thermal analysis industry.

How to Evaluate the Temperature Range of a Thermal Analysis Crucible?

If you do not check the temperature range first, crucible failure can cost you time and even break your instruments.

Always match your test temperature with the rated maximum of your crucible. Platinum and sapphire crucibles can handle higher ranges, while aluminum is good for moderate conditions. Going past the recommended limit can cause dangerous cracks or melting.

Material	Safe Working Temperature (°C)	Application Type	Failure Risks
Aluminum	Up to 600	DSC for organics/polymers	Melting, warping above 600°C
Platinum	Up to 1600	High-temperature TGA, metals	Costly if overloaded, rare corrosion
Sapphire	Up to 2000	Extreme temperature reference measurement	Thermal shock if cooled too fast

I once worked on a test requiring a TGA at over 1100°C. Using an ordinary aluminum crucible was not an option—the test would have failed, and the hardware could have been damaged. It is important to rely on the maximum use temperature from the manufacturer's specification sheet. Underestimating this factor might require repairs and waste your precious samples.

What Precision Tolerances Are Required for Thermal Analysis Crucibles?

Even a slight size error or impurity can cause signal drift or data loss. Focusing on precision saves you from unexpected errors.

Look for crucibles with dimensional tolerance usually within ±0.01mm and metal purity of 99.99%. These factors prevent leaks, improve reproducibility, and keep heating even. This detail is critical for labs that need reliable measurements day after day.

Specification	Standard Tolerance	Importance
Dimensional Accuracy	±0.01 mm	Ensures fit with testing instrument, reduces risk of sample loss
Material Purity	>=99.99%	Prevents test contamination, reliable thermal signals
Surface Finish	Smooth (Ra < 0.2 µm)	Better sealing, stable sample position

Checking for uniform sizing and high-purity metals is one way to catch issues before they appear. Most original manufacturer pans stick to these tight tolerances. That is the approach I trust when working with samples where every μg counts. For more about why these tolerances matter, see the engineering tolerance guidelines widely used in lab equipment manufacturing.

How Do You Choose Between Different Types of Thermal Analysis Crucibles for Your Tests?

There are many types of crucibles. Picking the wrong one often means wasted samples or bad data. Many labs find this choice tricky.

First, match the sample type and method (like DSC or TGA) to the material and size. Think about sealing types, depth, and volume. Always use the manufacturer's guide for paired device and crucible compatibility.

Crucible Type	Best For	Key Benefits	Compatible Instruments
Standard Aluminum Pans	Routine DSC, food, pharma, polymers	Inexpensive, quick heat transfer	TA Instruments, Mettler Toledo, NETZSCH
Sealing Crucibles (with O-rings/Caps)	Volatile/liquid samples	Prevents evaporation, safer test process	PerkinElmer, Shimadzu, Hitachi
Platinum Cups	High-temperature, strong acid/base samples	Excellent chemical stability	All STA, advanced TGA devices
Custom-shaped Crucibles	Unusual sizes, custom setups	Perfect fit, meets specific research needs	Based on drawing/sample

For many projects, I focus on features like sealing, size, thickness, and compatibility. It is important to look up the model-specific table of your device before buying. Tools like the TGA and DSC each have unique needs. Taking the time to check these points means you get more repeatable, quality results from each run.

Conclusion

Choosing the right thermal analysis crucible means checking the material, temperature range, tolerances, and style. Small details make a big difference in your lab results.
