Understanding the Importance of Sample Pan Size in Mettler Toledo DSC

If you use the wrong sample pan size in your DSC, your thermal analysis results might be wrong or misleading. This is a simple problem, but it leads to costly errors.

Choosing the right sample pan size for your Mettler Toledo DSC ensures reliable heat transfer and accurate measurement of your material properties. Always match the pan size with the sample and method for the best outcomes.

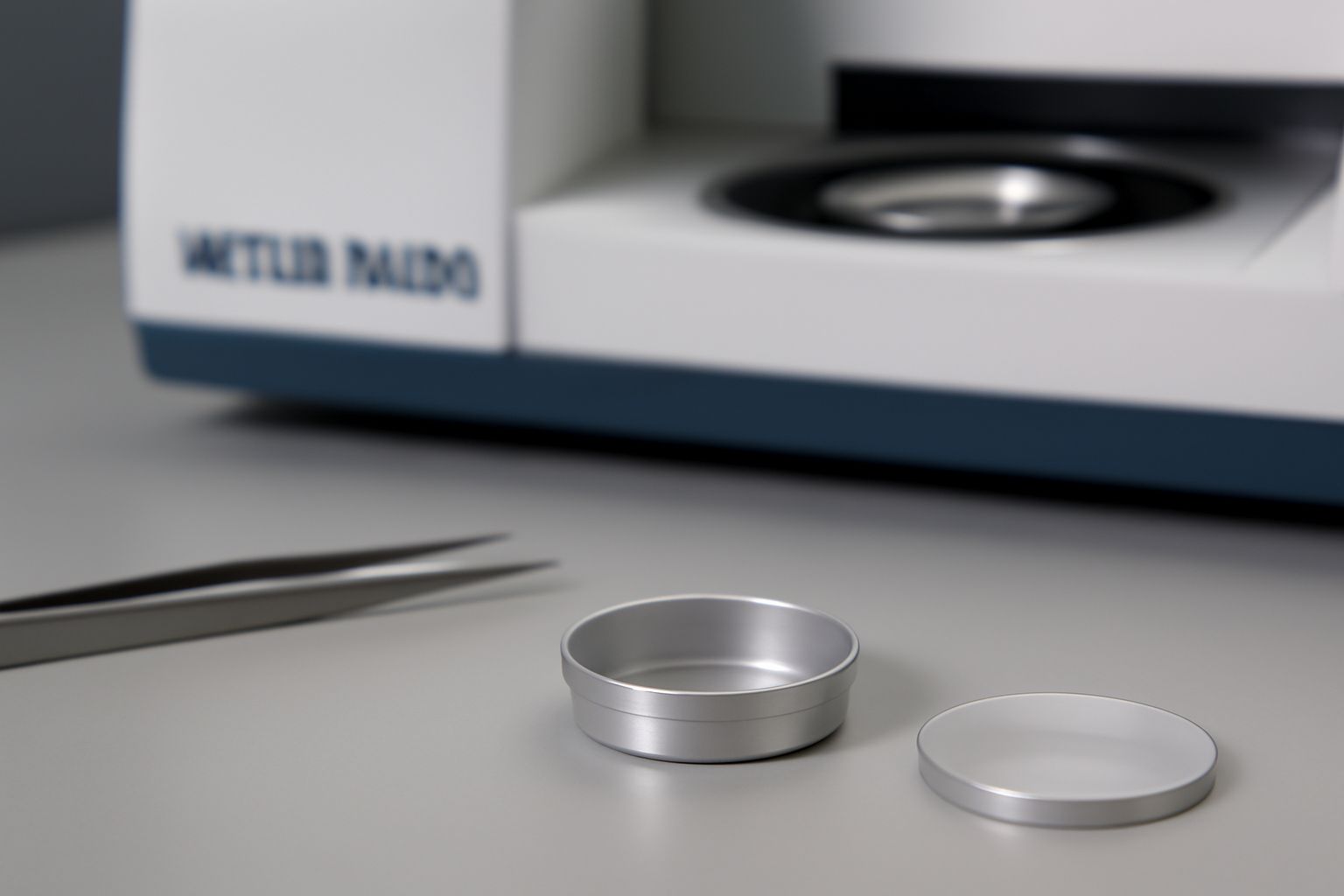

Mettler Toledo DSC sample pans in various standard sizes arranged on a laboratory table for thermal analysis.

The details behind sample pan size can change your lab work. If you want to avoid bad results in your thermal analysis, you need to know how pan size matters and how to select it for your exact needs. I spent years in industry labs and saw how a small change in pan size makes a big impact. Let me show you what I learned. This will help you make better decisions for your experiments, from research to quality control.

How Does Sample Pan Size Affect Thermal Analysis Results?

If your pan is too big or too small for the sample, heat won’t flow evenly and you risk errors in the DSC signal. This happens more than people think.

The pan size changes how your sample absorbs and releases heat. Choose a pan that fits your sample to avoid poor heat transfer, uneven heating, or baseline noise.

The Relationship Between Pan Size and Analysis Accuracy

Factor	Effect of Incorrect Pan Size	Why It Matters
Thermal Conductivity	Poor pan contact slows heat flow	Results in lagging or delayed responses
Baseline Stability	Too large pans cause drifting baselines	Makes it hard to interpret small effects
Peak Resolution	Mismatch causes peak broadening	You might miss phase transition events
Sample Evaporation	Improper pan size fails to seal volatile samples	Leads to mass loss and inaccurate results

When I started using DSC instruments, I quickly noticed the effect of pan size on the clarity of my results. Peaks shifted, and sometimes the data seemed random. Once we fixed pan size, the software output improved and interpretation became much easier. This lesson has stuck with me ever since.

Choosing the Right Size for Different Sample Types

Not all samples are the same. You need a pan size that matches what you’re testing — whether powder, polymer, or liquid.

Choose a pan that can safely hold your sample amount without overfilling. For fine powders and liquids, smaller pans help avoid spills and ensure tight sealing.

Sample Type and Pan Size Guidelines

Sample Type	Recommended Pan Size (Volume)	Key Benefit
Polymers	20–40 μL	Reduces contamination, matches test needs
Powders	10–30 μL	Gives stable baselines, easy weighing
Liquids	10–25 μL (use sealed pans)	Prevents evaporation or leaks
Metals & Inorganics	30–100 μL	Supports higher mass loading

In my experience working with thermoplastics, using the correct volume pan prevents overheating and gives crisp melting points. If I switch to powders, the smallest pans keep my baselines smooth and make weighing easier. Always check your method and adjust the pan size for optimal results.

What Are the Standard Sizes for Mettler Toledo DSC Sample Pans?

Mettler Toledo offers DSC pans in different standard sizes, designed for a range of tests. Pick a size that matches both your material and the method.

The standard sizes include 20 μL (aluminum), 40 μL (aluminum), and larger platinum or high-pressure pans for special cases.

Comparison of Common Mettler Toledo DSC Pan Sizes

Pan Material	Typical Volume (μL)	Margin of Error	Application Examples
Aluminum Standard	40	±2 μL	Polymers, pharmaceuticals (learn more)
Aluminum Low Volume	20	±1 μL	Trace analysis, volatile organics
Platinum	40–100	±5 μL	High-temp reactions, metals
High Pressure	45–130	±5 μL	Decomposition, reactions under gas

In our lab, we found the 40 μL aluminum pans cover most common DSC needs. Their high purity and tight controls provide trusted results. When you need to test at high temperature or under gas pressure, the platinum and high-pressure pans give you more flexibility.

How to Calculate the Appropriate Sample Pan Size?

Calculating the right pan size starts with your sample mass and target precision. Aim to fill the pan without overfilling or leaving too much empty space.

Divide the sample mass by the sample density to estimate volume, then pick the closest volume pan that suits your test.

Steps to Determine Pan Size

Step	Description	Helpful Resource
1. Check Test Method	Find recommended sample mass for analysis	DSC Basics
2. Measure Sample Mass	Weigh out your target sample mass (mg)	Use an analytical balance
3. Calculate Volume	Volume = Mass / Density	Look up density in material datasheets
4. Select Pan	Choose pan that fits calculated volume plus headspace	Consult Mettler Toledo's pan chart

I always check my sample's datasheet for density before measuring out my sample amount. This prevents overfilling and helps with even thermal contact. A simple volume calculation often ensures I pick the right pan, whether I am testing a polymer film or a pharmaceutical powder.
