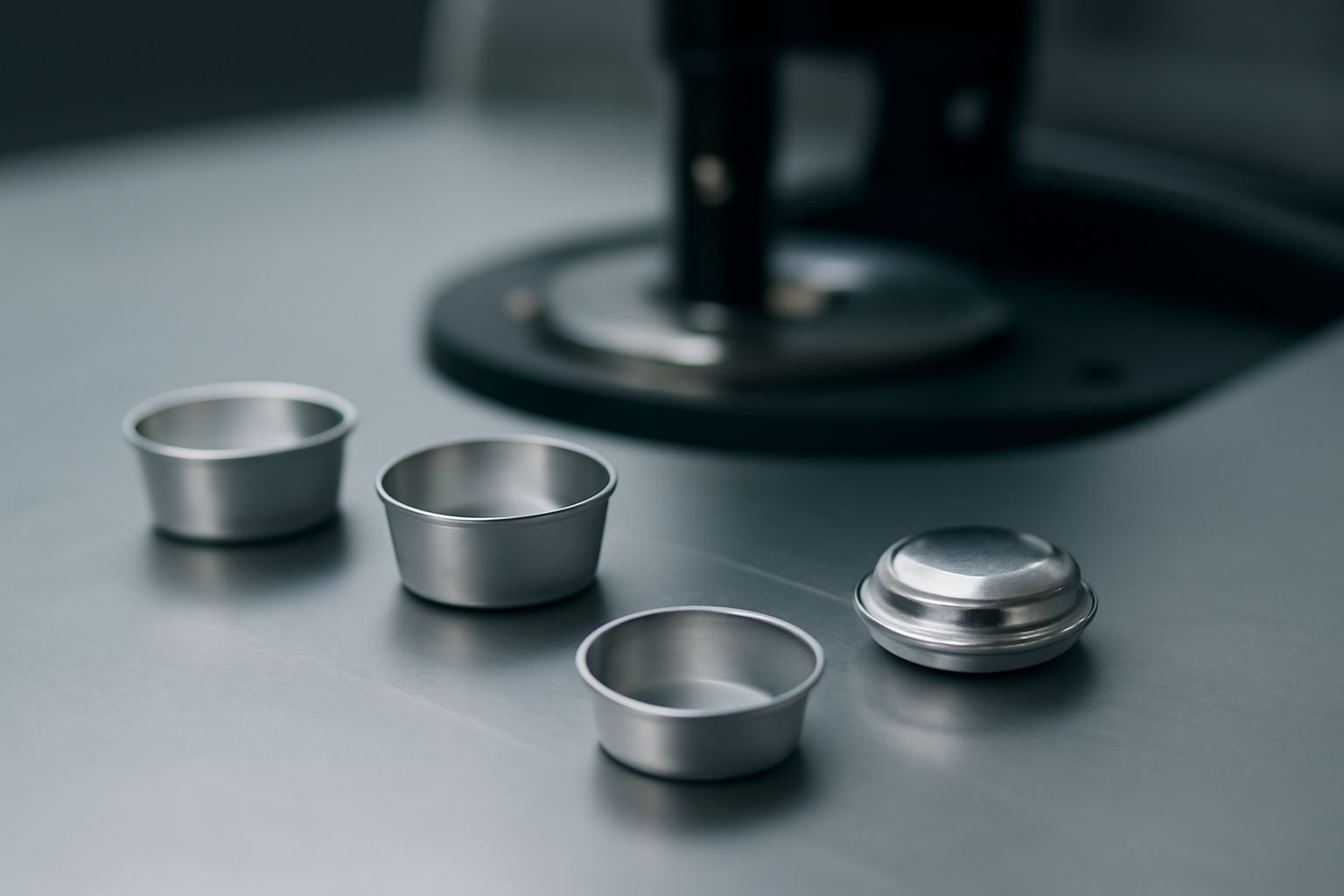

Material Purity and Its Impact on Thermal Analysis Accuracy?
Impure and low-grade pan materials will interfere with your sample and distort your DSC readings. With so many options on the market, how do you ensure purity?
High-purity materials like 99.99% aluminum or platinum are essential for lab work. They prevent contamination and ensure your sample’s thermal signals are not mixed up with the pan's background response.
| Material | Typical Purity (%) | Suitability | Main Use |
|---|---|---|---|
| Aluminum | 99.99 | Excellent signal, no major interference | Standard DSC/TGA |
| Platinum | 99.95 | Best for high-temp, stable and inert | Advanced STA, high-temp DSC |
| PTFE | 99.9+ | Non-metal samples, low-temp | Special organics, some pharmaceuticals |
Lower purity can introduce unwanted heat signals, especially if the pan contains trace elements or oxides. Multiple studies confirm contamination risk when low-grade alloys are in contact with sensitive samples (see: Thermochimica Acta 2007). For this reason, I always recommend verifying supplier claims with actual data sheets or certificates. When thermal analysis requires utmost accuracy, platinum is preferred. However, aluminum with certified purity is standard for most needs.
Understanding Pan Dimensions: How Size Affects Sample Loading and Heating Rates?
Using pans that do not fit your sample or DSC sensor will ruin test results. Too large, and you get uneven heating. Too small, and you may miss important thermal transitions.
The pan’s diameter, depth, and volume must fit both your sample weight and the sensor geometry for correct heat transfer and accurate readings.
| Dimension | Typical Range | Effect on Analysis | Best Practice |
|---|---|---|---|
| Diameter | 5–7 mm (DSC); 6–10 mm (TGA) | Controls contact area, heat flow uniformity, & fitting | Match to instrument model (see DSC specs) |
| Depth | 1.0–2.5 mm | Affects loading and sealed head space | Pick slightly larger than sample for easy sealing |
| Volume | 20–50 μL (DSC); up to 100 μL (TGA) | Ensures good sample contact and sensitivity | Choose volume near your sample weight for precision |
The right pan size gives consistent heating rates and prevents signal loss or artifacts. For example, an overfilled pan can cause baselines to drift. Reliable sources (Journal of Chemical Education, 2010) explain that pan geometry must match both the instrument and the sample mass. Before buying, always confirm your pan size matches your TA Instruments model and experiment design.
The Significance of Lid Types: Choosing Between Standard and Hermetic?
A pan’s lid will decide if you capture all your sample’s thermal events. A loose or wrong lid type can let volatile samples escape, or even cause safety hazards during analysis.
DSC pans use standard, crimped, or hermetic lids. Your sample and experimental goal will determine which lid is best for your work.
| Lid Type | Seal Level | Best For | Limitations |
|---|---|---|---|
| Standard (Loose-fit) | Low | Open systems, thermal stability screening | Volatiles may escape, not for moist samples |
| Hermetic Crimp | High | Moist, volatile, or degradable samples | Requires special press to seal, cannot be reused |
| Vented Lid | Medium | Samples releasing small gases, controlled pressure | Not leak-proof under high pressure |
A study from Thermochimica Acta 1989 confirmed that improperly sealed lids cause mass loss, fake thermal signals, and even pan ejection at high pressure. I always match the lid to the sample volatility and the DSC method. Hermetic pans are my go-to for water-rich or pharmaceutical analysis.
Temperature and Pressure Ratings: Matching Pan Specifications to Experimental Conditions?
Every pan has a limit. Push it past its rating and it may rupture, fail, or cause an experiment to abort mid-run. That risk is real in every advanced thermal analysis lab.
Check temperature and pressure limits before each run. Aluminum DSC pans rarely exceed 600°C, while platinum or high-pressure pans go higher.
| Material | Max Temp (°C) | Pressure Tolerance | Application |
|---|---|---|---|
| Aluminum | ~600 | 1 bar (standard); up to 3 bar (reinforced) | Routine DSC/TGA, safe for most organics |
| Platinum | ~1600 | 10+ bar (with sealing system) | High-temp, high-pressure, advanced research |
| Gold coated | ~400-500 | Low (usually not sealed) | Highly reactive or sticky samples |
Industry guides (TA Instruments DSC Compendium) track that exceeding these numbers risks seal failure and data loss. I never run a test without first checking my pan ratings. In my experience, experts always double-check this before launching any critical run, especially with high-enthalpy or sealed experiments.
